SpeedBox 3.0 for OLI - Package: BAG, Qty: 20 pcs + 3 free

(3)

More photos (5)

Add to favourites

PROPERTIES:
Activation: by entering the WALK assist mode briefly | ↓ ↑↓ ↑
Maximum speed: unlimited
Display shows: actual values
Speed limit setting: YES
Compatible with:
   motors OLI Sport
Not compatible with: motors OLI Edge
   OLI Sport Plus
   SpeedBox Connect
In case of updating the software of your e-bike, uninstall SpeedBox from the e-bike first, update the software and reinstall SpeedBox.

More

Product code: SB3_OLI_20+3pcs_BAG Shipping and Payment

Key features

SpeedBox 3.0 is a third-generation tuning chip for e-bikes with OLI motors that lets you choose your own speed limit. It disables the speed limiter so you can enjoy riding at unlimited speed, while the display keeps showing real values such as maximum and average speed, daily mileage and range.

Tuning control

Activated by briefly entering WALK mode or via the ↓↑↓↑ sequence

Real values on the display

The display keeps showing maximum and average speed, daily distance and range

Easy installation

Thanks to clear instructions including a video, anyone can handle the installation

Compatibility

Motors: OLI Sport

Not compatible with: OLI Edge, OLI Sport Plus, SpeedBox Connect

Technical specifications

Maximum speed	Unlimited
Display shows	Real values
Custom speed limit	Adjustable
Activation	By briefly entering WALK mode or via the ↓↑↓↑ sequence
Minimum ride distance before installation	10 km (new bike)

Installation

Installing the device is easy and intuitive. Choose the option that suits you best – a video guide, a printed manual, or a detailed step-by-step picture guide.

Video guide

Detailed installation and tuning activation procedure for e-bikes with an OLI Sport motor

Printed manual

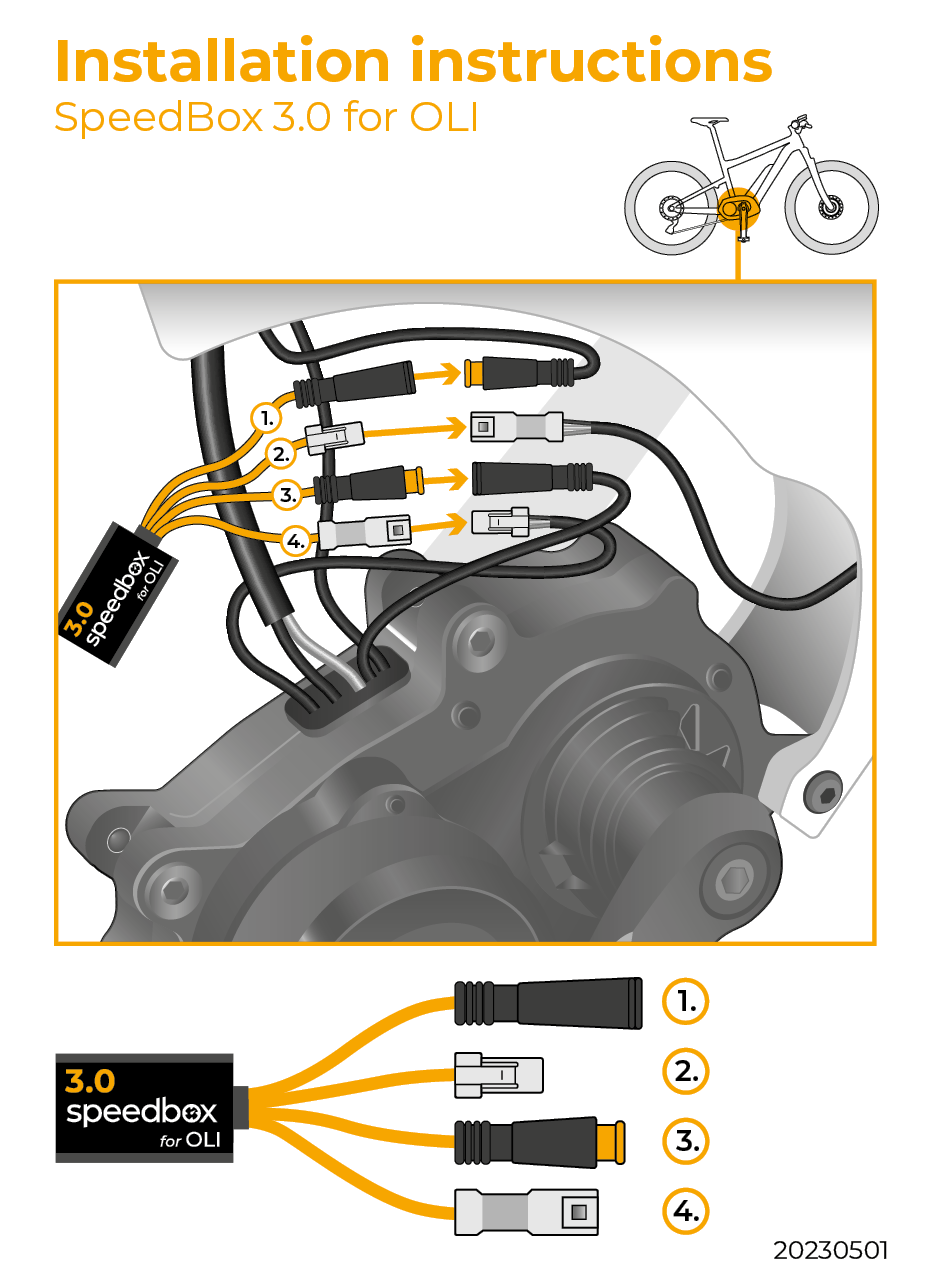

Inside the product package you will find a printed manual including a wiring diagram for connecting the chip to the motor

Step by step

The illustrated guide will walk you through the installation step by step — from removing the motor cover to the test ride. Each step is accompanied by photos and clear explanations.

User Manual →

Tuning control

You activate the tuning directly on the e-bike's display. To activate it, briefly enter the WALK assist mode. The value 9.9 km/h (6.2 mph) will briefly appear on the display, and from then on you can ride at unlimited speed.
To deactivate the tuning, briefly enter the WALK assist mode again. The value 2.5 km/h (1.6 mph) is displayed and the speed limit resets to the original 25 km/h. Your e-bike will then work the same as before the chip was installed.
You can also activate or deactivate the tuning by pressing the ↓↑↓↑ buttons.

Setting the maximum speed

You set the maximum speed limit by switching between the assistance modes – three levels down and then three levels up (for example 4→3→2→1→2→3→4). The current speed limit will then appear on the display. The value 1.5 km/h on the display corresponds to a limit of 15 km/h, 2.0 km/h to 20 km/h, 2.5 km/h to 25 km/h, 3.0 km/h to 30 km/h, and so on. You set the limit by entering the WALK assist mode repeatedly or by turning the rear wheel by 360°.
The last displayed limit is saved after 5 seconds of inactivity.

Warning

Rules for using derestricted e-bikes vary by country, so check local legislation before riding.
SpeedBox is intended for off-road use only and you use it at your own risk.
The manufacturer is not liable for damage caused by illegal or improper use.
Installation may also void your e-bike warranty.
For your safety, use appropriate protective gear and ride with maximum caution.
If you update the software of your e-bike, first uninstall SpeedBox from the e-bike, update the software and then reinstall SpeedBox.
